CNC High Speed Plate Drilling- Lian Jie

LHDM-T Series with high speed spindle up to 2000rpm, support with the spindle center water cooling function for heavy duty drilling and rigid tapping and high efficiency.

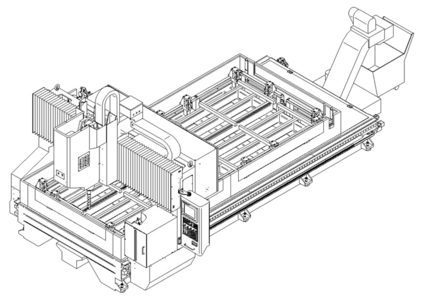

LHDM- T Series is gantry type high speed drilling machine, it’s suitable for such as steel structure plate.
Drilling diameter from 6~50mm, Max drilling thickness up to 100mm, this machine also can apply in most usage of steel construction, joint plate, heat changer tube plate drilling job.
BT40 taper spindle, with spindle air cooling system & spindle air curtain system to protect the spindle.
CNC system: Syntec 10MF CNC system, Windows CE base for plate drilling jobs with ease operation interface.
Standard 10T umbrella type ATC .
Tool life management, users can set up the max Z feeding distance or the drill bit overload current, once over the setting value the machine will change the tools automatically.
X axes with Auto clamping device, they will hold & clamp the machine body tightly during drilling & enhance the machine satiability.
BORE_DXF File transfer software (DXF convert to G、M code) , part program easy produce.
