LDM-SERIES

Product Items/ Drilling Machine Series / LDM-SERIES

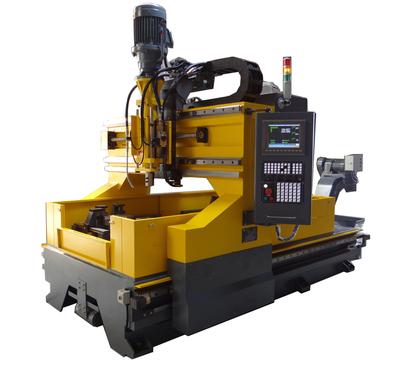

  • LDM-Series is gantry type hydraulic drilling machine, it’s suitable for such as steel structure plate.
  • Drilling diameter from ∮16~50mm, Max drilling thickness up to 100mm.
  • CNC system: Syntec 10MA CNC system, Windows CE base for plate drilling jobs with ease operation interface.
  • X & Y axes with Auto clamping device, they will hold & clamp the machine body tightly during drilling & enhance the machine satiability.
  • BORE_DXF File transfer software (DXF convert to G、M code) , part program easy produce.

Characteristics of the Product

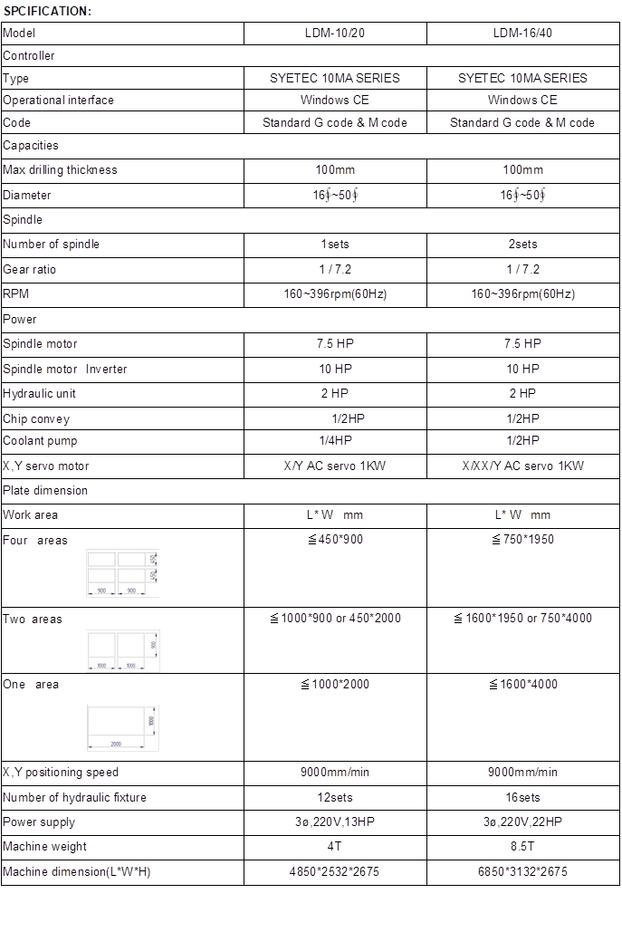

Specifications
